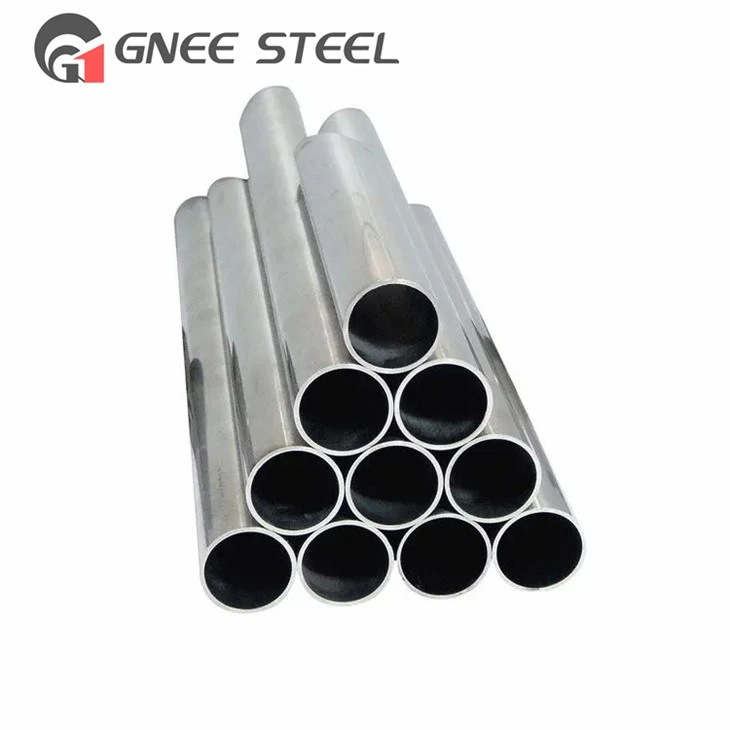

JIS G4305 SUS304 stainless steel pipe
SUS304 is a stable and multi-purpose stainless steel material, widely used in construction, engineering, food processing, medical equipment, chemical industry and other fields.
JIS G4305 SUS304 stainless steel pipe
304 stainless steel pipe is a stainless steel containing 18-20% chromium (Cr) and 8-10.5% nickel (Ni), often called austenitic stainless steel. Chromium is the main element that forms the passivation layer of stainless steel, making the metal corrosion-resistant. The addition of nickel enhances the stability of the austenite structure and improves high-temperature oxidation resistance, making the steel resistant to stress corrosion cracking.
For situations where stretch forming is required, a lower nickel content (8%) may be more appropriate, as nickel affects the formability of the steel to some extent. In processes that require deep drawing, a higher nickel content (9% or higher) is more conducive to improving the formability of the steel.
In addition, A213 TP304 steel pipe may contain other chemicals, but these substances are below the maximum allowable levels. However, it should be noted that in 304H, due to the increase in carbon content (minimum 0.04%, maximum 0.10%), its mechanical properties and processing properties may vary. For drawn tubes, the maximum carbon content is 0.04%.
Chemical Composition of Stainless Steel 304
| 304 | |||
| 0.08 | |||
| 2.00 | |||
| 0.045 | |||
| 0.030 | |||
| 0.75 | |||
| 18.00 20.00 |
|||
| 8.0 10.50 |
|||
| 0.10 | |||
Typical Mechanical Properties-Stainless Steel 304
| Yield Strength Rp 0.2, N/mm² | |||
| 304 Annealed | 500-700 | 195 | 40 |
| 8 g/cc | 0.289 lb/in³ |

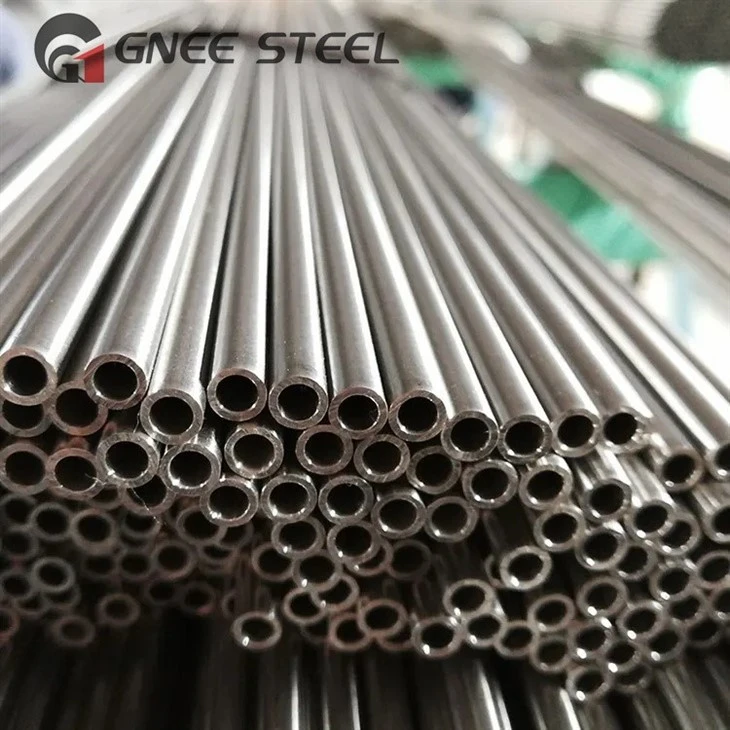

304/304L Stainless Steel pipe
GNEE Company is a comprehensive carbon steel company integrating processing and trade, with a monthly output of about 2,000 tons. It specializes in the production of carbon steel pipes, alloy pipes, stainless steel pipes, and other steel pipe products. In addition, the size can be customized according to your requirements and widely used in various fields.
Q.What is the difference between 304 and 304L pipe?
A.The only difference between them is the carbon content. Type 304 has a maximum carbon of 0.07% . Type 304L has maximum carbon of 0.030 %. This range of carbon in the steels affects the corrosion resistance.
